Simple Reset/Power-On Reset IC, featuring a 3.15V overvoltage threshold and 3V undervoltage threshold, with a typical threshold voltage of 3.075V. This component operates within a 1V to 5.5V supply voltage range, drawing a maximum supply current of 60uA. Packaged in a 3-pin TO-92 through-hole mount, it offers active high reset with a 150ms reset timeout.
PackageTO-92
Current60uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP101-315DI/TO technical specifications.
General
| Package/Case | TO-92 |
| Height | 4.62mm |
| Lead Free | Lead Free |
| Length | 4.71mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 3.15V |
| Min Reset Threshold Voltage | 3V |
| Max Supply Current | 60uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 60uA |
| Output | TOTEM-POLE |
| Overvoltage Threshold | 3.15V |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Quiescent Current | 45uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Active High |
| Reset Timeout | 150ms |
| RoHS Compliant | Yes |
| Supply Current | 60uA |
| Threshold Voltage | 3.075V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 3V |
| Watchdog Timer | No |
| Width | 3.62mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP101-315DI/TO Datasheet
Download the complete datasheet for Microchip MCP101-315DI/TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

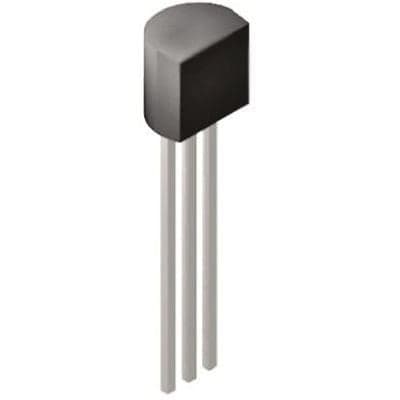

Product Images
