1-channel power supply support circuit, surface mount, SOT-23 package. Features a 2.85V undervoltage threshold and 3V overvoltage threshold, with an active-high reset. Operates from 1V to 5.5V supply voltage, consuming a maximum of 60µA supply current. Reset timeout is 150ms. Lead-free and RoHS compliant.
PackageSOT-23
Current60uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP101T-300I/TT technical specifications.
General
| Package/Case | SOT-23 |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 3V |
| Min Reset Threshold Voltage | 2.85V |
| Max Supply Current | 60uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 60uA |
| Output | TOTEM-POLE |
| Overvoltage Threshold | 3V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 45uA |
| Radiation Hardening | No |
| Reset | Active High |
| Reset Timeout | 150ms |
| RoHS Compliant | Yes |
| Supply Current | 60uA |
| Threshold Voltage | 3V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.85V |
| Watchdog Timer | No |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP101T-300I/TT Datasheet
Download the complete datasheet for Microchip MCP101T-300I/TT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

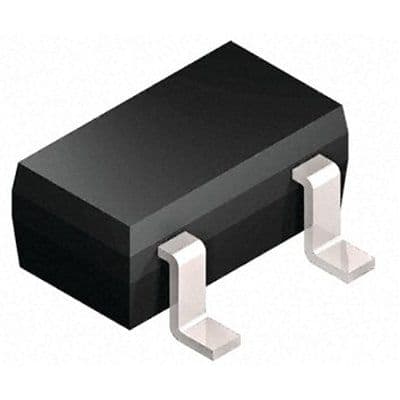

Product Images
