This 1-channel power supply support circuit is a surface mount integrated circuit designed for general power management. It features a 3-pin SC-70 package with dimensions of 2.25mm (L) x 1.35mm (W) x 1mm (H). The device monitors a single voltage with a reset threshold voltage of 2.63V, operating between 1V and 5.5V supply voltage. It offers an active-low, totem-pole output and a reset timeout of 80ms, with a low quiescent current of 1µA. This lead-free, RoHS-compliant component is supplied on tape and reel.
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP102T-270E/LB technical specifications.
General
Package/Case
SC
Height
1mm
Lead Free
Lead Free
Length
2.25mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
2.67V
Min Reset Threshold Voltage
2.591V
Max Supply Current
1.75uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Voltages Monitored
1
Operating Supply Current
1.75uA
Output
TOTEM-POLE
Overvoltage Threshold
2.67V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
1uA
Reset
Active Low
Reset Timeout
80ms
RoHS Compliant
Yes
Threshold Voltage
2.63V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
2.591V
Watchdog Timer
No
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP102T-270E/LB Datasheet
Download the complete datasheet for Microchip MCP102T-270E/LB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

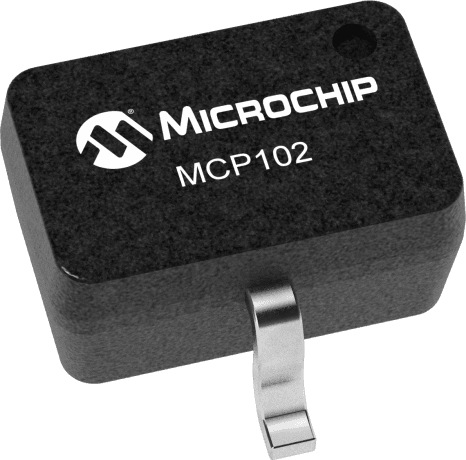

Product Images
