Surface mount voltage detector with active-low, totem-pole output. Monitors a single voltage supply with a threshold range of 2.591V to 2.67V. Features a low operating supply current of 1.75µA, maximum supply voltage of 5.5V, and operates from 1V. Packaged in a 3-pin SOT-23 case, this RoHS compliant component is ideal for power supply monitoring applications.
PackageSOT-23
Current1uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP112T-270E/TT technical specifications.
General
Package/Case
SOT-23
Height
1.02mm
Lead Free
Lead Free
Length
3.04mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Max Reset Threshold Voltage
2.67V
Min Reset Threshold Voltage
2.591V
Max Supply Current
1.75uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Voltages Monitored
1
Operating Supply Current
1.75uA
Output
TOTEM-POLE
Output Type
Voltage
Overvoltage Threshold
2.67V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
1uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active Low
RoHS Compliant
Yes
Supply Current
1uA
Termination
SMD/SMT
Threshold Voltage
2.63V
Type
Simple Reset/Power-On Reset, Voltage Detector
Undervoltage Threshold
2.591V
Watchdog Timer
No
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP112T-270E/TT Datasheet
Download the complete datasheet for Microchip MCP112T-270E/TT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

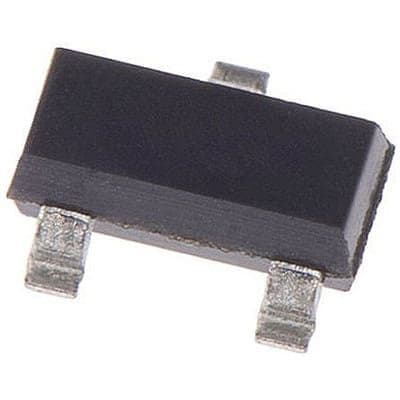

Product Images
