Surface mount voltage detector IC with a 1-channel power supply monitoring capability. Features a 2.9V threshold voltage, with undervoltage at 2.857V and overvoltage at 2.944V. Operates from 1V to 5.5V supply voltage with a low 1.75µA supply current. Housed in a 3-pin SC-70 package, measuring 2.25mm x 1.35mm x 1mm, and is RoHS compliant.
PackageSC
Current1uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP112T-290E/LB technical specifications.
General
Package/Case
SC
Height
1mm
Lead Free
Lead Free
Length
2.25mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Max Reset Threshold Voltage
2.944V
Min Reset Threshold Voltage
2.857V
Max Supply Current
1.75uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Voltages Monitored
1
Operating Supply Current
1.75uA
Output
TOTEM-POLE
Output Type
Voltage
Overvoltage Threshold
2.944V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
1uA
Reach SVHC Compliant
No
Reset
Active Low
RoHS Compliant
Yes
Supply Current
1uA
Threshold Voltage
2.9V
Type
Simple Reset/Power-On Reset, Voltage Detector
Undervoltage Threshold
2.857V
Watchdog Timer
No
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP112T-290E/LB Datasheet
Download the complete datasheet for Microchip MCP112T-290E/LB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

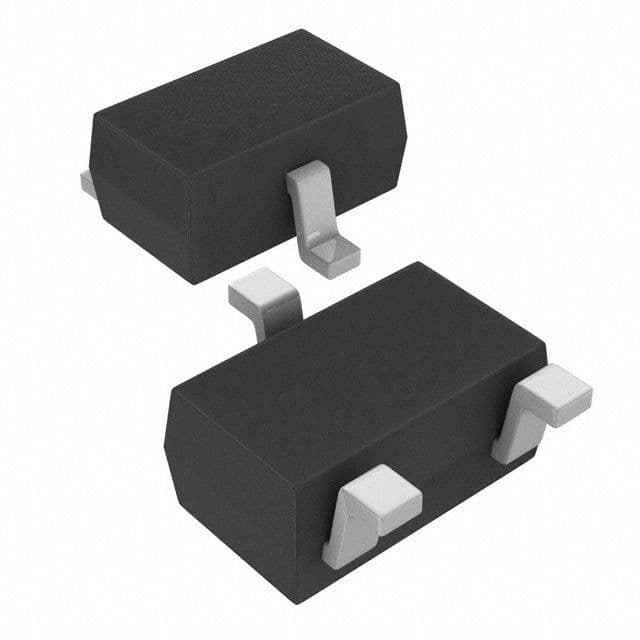

Product Images
