Surface mount voltage detector IC with a 4.7V overvoltage threshold and 4.561V undervoltage threshold. Features a 1-channel power supply support circuit, active low reset, and a TOTEM-POLE output. Operates within a 1V to 5.5V supply voltage range, drawing a maximum of 1.75µA supply current. Packaged in a 3-pin SOT-23-3 surface mount package, this lead-free and RoHS compliant component is supplied on tape and reel.
PackageSOT-23-3
Current1uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP112T-475E/TT technical specifications.
General
Package/Case
SOT-23-3
Height
1.02mm
Lead Free
Lead Free
Length
3.04mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
4.7V
Min Reset Threshold Voltage
4.561V
Max Supply Current
1.75uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Voltages Monitored
1
Operating Supply Current
1.75uA
Output
TOTEM-POLE
Overvoltage Threshold
4.7V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
1uA
Reach SVHC Compliant
No
Reset
Active Low
RoHS Compliant
Yes
Supply Current
1uA
Threshold Voltage
4.63V
Type
Simple Reset/Power-On Reset, Voltage Detector
Undervoltage Threshold
4.561V
Watchdog Timer
No
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP112T-475E/TT Datasheet
Download the complete datasheet for Microchip MCP112T-475E/TT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

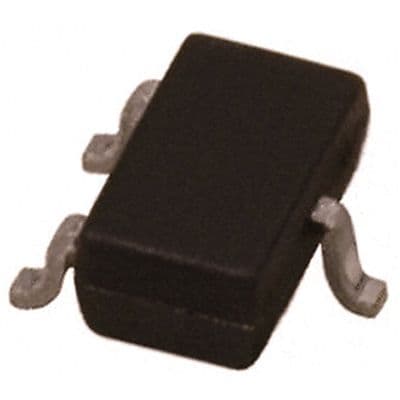

Product Images
