Single-channel power supply support circuit, TO-92-3 package, through-hole mount. Features a reset threshold voltage range of 4.5V to 4.75V with a 4.625V nominal value and -5% accuracy. Operates from 1V to 5.5V supply voltage, consuming a maximum of 60µA supply current. Includes active-low reset with a 150ms reset timeout. RoHS compliant and lead-free.
PackageTO-92-3
Current45uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP130-475FI/TO technical specifications.
General
| Accuracy | -5% |
| Package/Case | TO-92-3 |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 4.75V |
| Min Reset Threshold Voltage | 4.5V |
| Max Supply Current | 60uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 60uA |
| Overvoltage Threshold | 4.75V |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Quiescent Current | 45uA |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Timeout | 150ms |
| RoHS Compliant | Yes |
| Supply Current | 45uA |
| Threshold Voltage | 4.625V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 4.5V |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP130-475FI/TO Datasheet
Download the complete datasheet for Microchip MCP130-475FI/TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

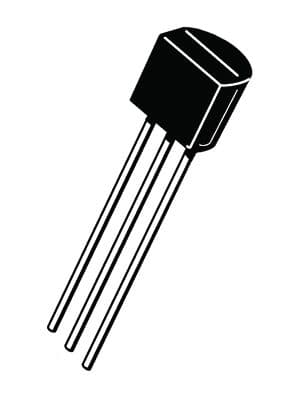

Product Images
