Supervisory circuit IC featuring a single channel with an active-low reset output. Monitors one voltage with a reset threshold accuracy of -5%, configurable between 4.5V and 4.75V. Operates from a 1V to 5.5V supply voltage, drawing a maximum of 60µA quiescent current. Packaged in a TO-92-3 through-hole mount, this lead-free and RoHS compliant component offers a 150ms reset timeout.
PackageTO-92-3
Current45uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP130-475HI/TO technical specifications.
General
Accuracy
-5%
Package/Case
TO-92-3
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
4.75V
Min Reset Threshold Voltage
4.5V
Max Supply Current
60uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Through Hole
Number of Elements
1
Number of Voltages Monitored
1
Operating Supply Current
60uA
Overvoltage Threshold
4.75V
Package Quantity
1000
Packaging
Bulk
Quiescent Current
45uA
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
150ms
RoHS Compliant
Yes
Supply Current
45uA
Threshold Voltage
4.625V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
4.5V
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Microchip MCP130-475HI/TO Datasheet
Download the complete datasheet for Microchip MCP130-475HI/TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

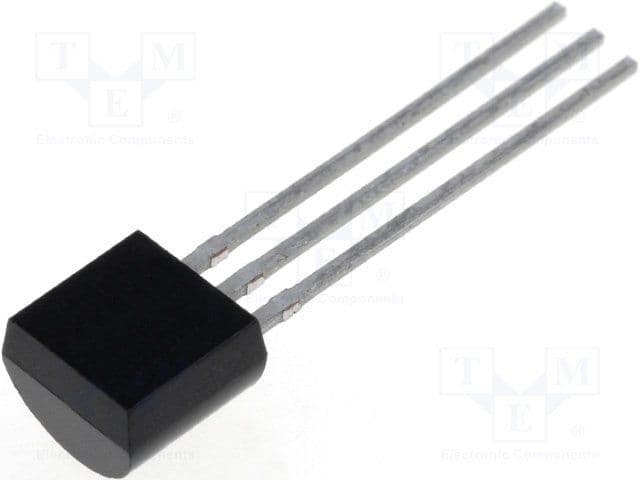

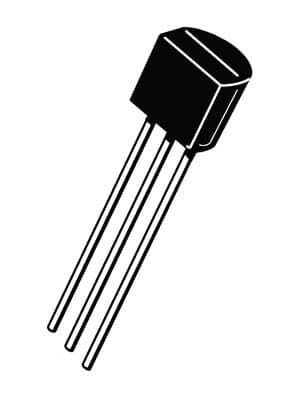

Product Images
