Surface mount supervisory circuit with a 4.75V threshold voltage, featuring active low reset and a 150ms reset timeout. This component monitors a single voltage with an accuracy of -5%, operating from 1V to 5.5V with a maximum supply current of 60uA. Packaged in a 3-pin SOT-23, it is RoHS compliant and suitable for automotive applications, with an operating temperature range of -40°C to 85°C.
PackageSOT-23
Current45uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP130T-475I/TT technical specifications.
General
Accuracy
-5%
Package/Case
SOT-23
Height
0.95mm
Lead Free
Lead Free
Length
2.9mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
4.75V
Min Reset Threshold Voltage
4.5V
Max Supply Current
60uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Voltages Monitored
1
Operating Supply Current
60uA
Overvoltage Threshold
4.75V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
45uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
150ms
RoHS Compliant
Yes
Supply Current
45uA
Threshold Voltage
4.75V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
4.5V
Watchdog Timer
No
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP130T-475I/TT Datasheet
Download the complete datasheet for Microchip MCP130T-475I/TT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

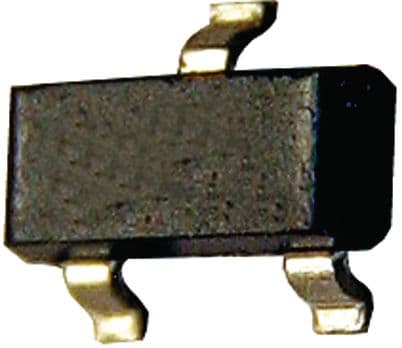

Product Images
