This 3-pin, TO-92 packaged power supply supervisor IC monitors a single voltage with an active-low reset output. It features a reset threshold voltage of 2.32V, with undervoltage at 2.285V and overvoltage at 2.355V. Operating across a 1V to 5.5V supply voltage range, it draws a maximum of 90µA supply current and 1µA quiescent current. The component offers a reset timeout of 80ms and is RoHS compliant, suitable for through-hole mounting.
PackageTO-92
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP131-240E/TO technical specifications.
General
Package/Case
TO-92
Height
4.95mm
Lead Free
Lead Free
Length
4.95mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
2.355V
Min Reset Threshold Voltage
2.285V
Max Supply Current
90uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Through Hole
Number of Voltages Monitored
1
Operating Supply Current
90uA
Overvoltage Threshold
2.355V
Package Quantity
1000
Packaging
Bulk
Quiescent Current
1uA
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
80ms
RoHS Compliant
Yes
Threshold Voltage
2.32V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
2.285V
Watchdog Timer
No
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP131-240E/TO Datasheet
Download the complete datasheet for Microchip MCP131-240E/TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

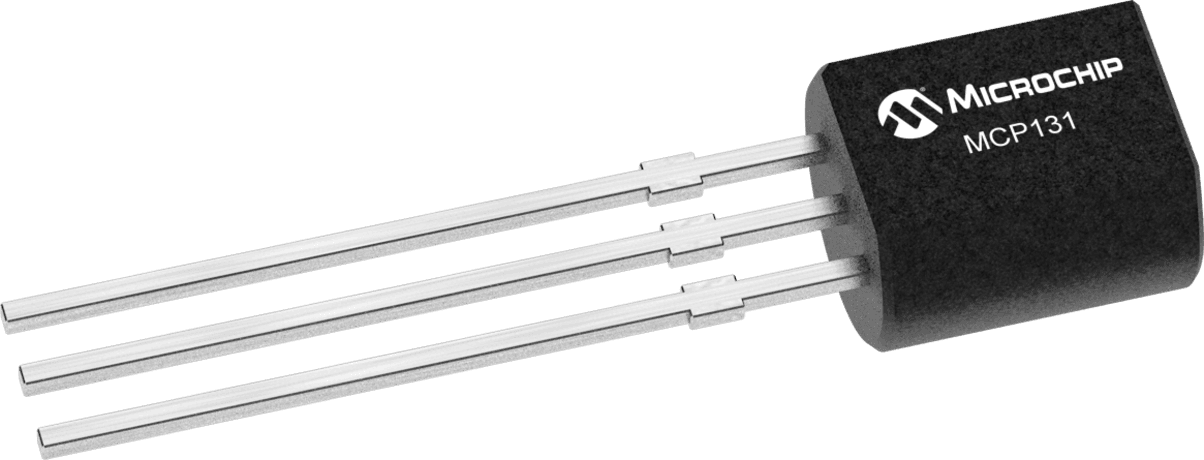

Product Images
