Single-channel power supply support circuit featuring an active-low reset output. This integrated circuit monitors a single voltage with a typical threshold of 3.08V, ranging from 3.034V (undervoltage) to 3.126V (overvoltage). Operating within a 1V to 5.5V supply voltage range, it exhibits a low quiescent current of 1µA and a maximum supply current of 90µA. The component is housed in a 3-pin TO-92 package suitable for through-hole mounting and is RoHS compliant.
PackageTO-92
Current45uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP131-315E/TO technical specifications.
General
Package/Case
TO-92
Height
4.95mm
Lead Free
Lead Free
Length
4.95mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
3.126V
Min Reset Threshold Voltage
3.034V
Max Supply Current
90uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Through Hole
Number of Voltages Monitored
1
Operating Supply Current
90uA
Overvoltage Threshold
3.126V
Package Quantity
1000
Packaging
Bulk
Quiescent Current
1uA
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
80ms
RoHS Compliant
Yes
Supply Current
45uA
Threshold Voltage
3.08V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
3.034V
Watchdog Timer
No
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP131-315E/TO Datasheet
Download the complete datasheet for Microchip MCP131-315E/TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

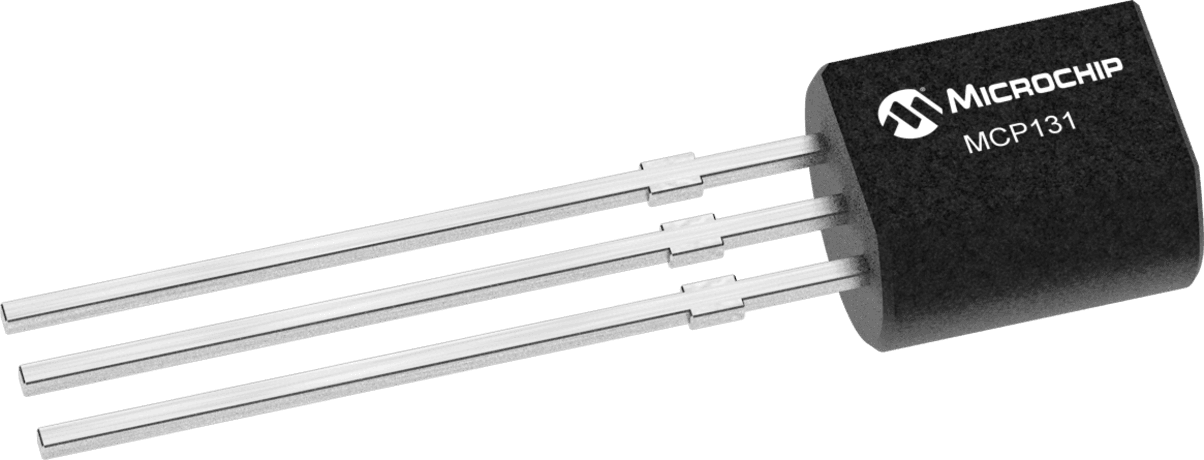

Product Images
