Microchip
MCP1404-E/SO
4.5 A BUF OR INV BASED MOSFET DRIVER, PDSO16, 7.50 MM, LEAD FREE, PLASTIC, SOIC-16
PackageSOIC W
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP1404-E/SO technical specifications.
General
Package/Case
SOIC W
Fall Time
28ns
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
4.5A
Max Supply Current
2mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
2
Number of Outputs
2
Package Quantity
47
Packaging
Rail/Tube
Propagation Delay
48ns
RoHS Compliant
Yes
Supply Current
2mA
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1404-E/SO Datasheet
Download the complete datasheet for Microchip MCP1404-E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

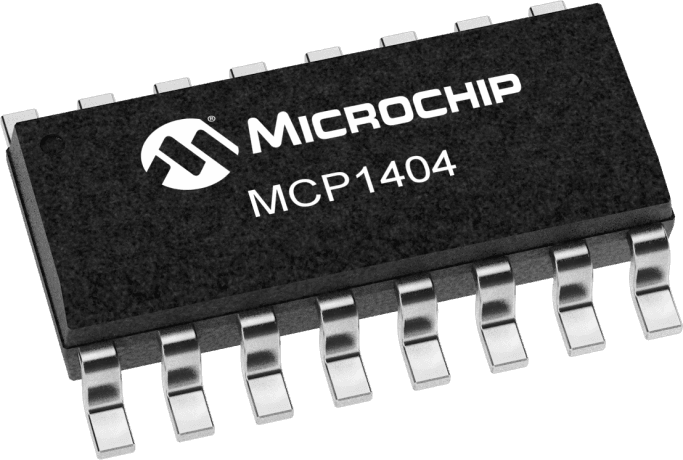

Product Images
