Dual MOSFET gate driver with 4.5A output current capability. Features a 48ns propagation delay and 28ns fall time. Operates from a 4.5V to 18V supply voltage, with a maximum supply current of 2mA. Surface mountable in a lead-free SOIC package.
PackageSOIC
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP1405-E/SN technical specifications.
General
Package/Case
SOIC
Fall Time
28ns
Height
1.25mm
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
4.5A
Max Supply Current
2mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
2
Number of Outputs
2
Output Current
4.5A
Output Voltage
25mV
Package Quantity
100
Packaging
Rail/Tube
Propagation Delay
48ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2mA
Turn-On Delay Time
48ns
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1405-E/SN Datasheet
Download the complete datasheet for Microchip MCP1405-E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

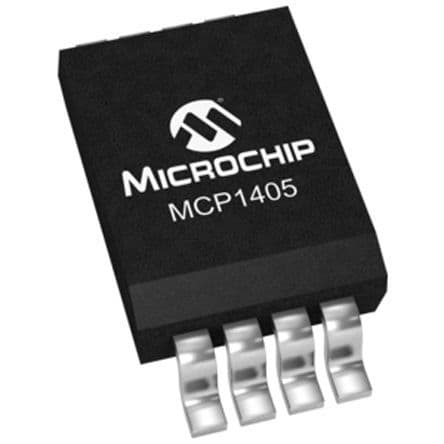

Product Images
