Dual-channel MOSFET driver with 2A output current capability. Features a 30ns propagation delay and 10ns fall time, operating from a 4.5V to 5.5V supply. This surface-mount component is housed in a 3.9mm wide, 4.9mm long, 1.25mm high SOIC package. Suitable for a wide temperature range of -40°C to 85°C.
PackageSOIC
Current80uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP14628-E/SN technical specifications.
General
Package/Case
SOIC
Fall Time
10ns
Height
1.25mm
Input Bias Current
250uA
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
2
Number of Outputs
2
Operating Supply Voltage
5V
Output Current
2A
Package Quantity
100
Packaging
Rail/Tube
Propagation Delay
30ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
80uA
Turn-On Delay Time
30ns
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP14628-E/SN Datasheet
Download the complete datasheet for Microchip MCP14628-E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

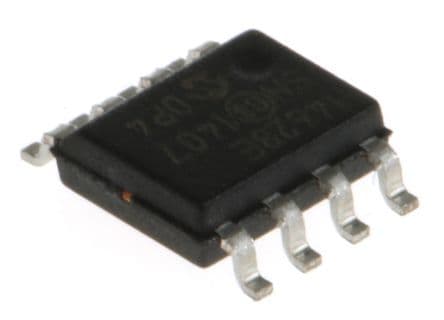

Product Images
