Precision 2.5V voltage reference IC, Series, Fixed, with a 1% tolerance. Features a 2.5V output voltage, 20mA maximum output current, and a 2.7V to 5.5V input voltage range. Operates with a 100µA quiescent current and is housed in a 3-pin TO-92 package for through-hole mounting. RoHS compliant and lead-free, with a maximum operating temperature of 85°C.
PackageTO-92
Current20mA
Voltage Rating4kV
Current Rating20mA
Quick Jump:
Technical Specifications
Microchip MCP1525-I/TO technical specifications.
General
Package/Case
TO-92
Current Rating
20mA
Height
4.62mm
Lead Free
Lead Free
Length
4.71mm
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
20mA
Max Output Voltage
2.5V
Min Output Voltage
2.475V
Max Supply Current
100uA
Mount
Through Hole
Output Current
2mA
Output Voltage
2.5V
Package Quantity
1000
Packaging
Bag
Quiescent Current
100uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Series, Fixed
Reference Voltage
2.5V
RoHS Compliant
Yes
Supply Current
20mA
Tolerance
1%
Voltage Rating
4kV
Width
3.62mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1525-I/TO Datasheet
Download the complete datasheet for Microchip MCP1525-I/TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

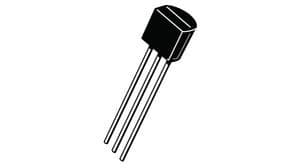

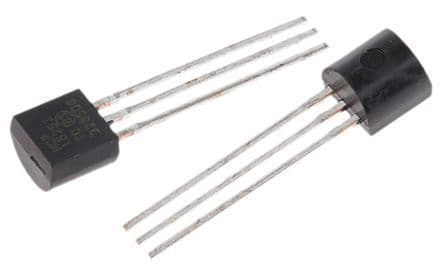

Product Images
