Precision voltage reference IC, outputting a fixed 4.096V with 1% tolerance. Features a 3-pin TO-92 package for through-hole mounting, operating from a 4.3V to 7V input range. Supports up to 20mA output current with a low dropout voltage of 137mV. Designed for a wide operating temperature range of -40°C to 85°C, with a maximum supply current of 100µA.
PackageTO-92
Current20mA
Voltage Rating4.137V
Current Rating20mA
Quick Jump:
Technical Specifications
Microchip MCP1541-I/TO technical specifications.
General
Package/Case
TO-92
Current Rating
20mA
Dropout Voltage
137mV
Height
4.62mm
Lead Free
Lead Free
Length
4.71mm
Max Input Voltage
7V
Min Input Voltage
4.3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
20mA
Max Output Voltage
4.096V
Min Output Voltage
4.096V
Max Supply Current
100uA
Mount
Through Hole
Nominal Input Voltage
5.5V
Number of Channels
1
Operating Supply Current
120uA
Output Current
2mA
Output Type
Fixed
Output Voltage
4.096V
Package Quantity
1000
Packaging
Bulk
Power Dissipation
140mW
Quiescent Current
100uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Series, Fixed
Reference Voltage
4.096V
RoHS Compliant
Yes
Supply Current
20mA
Tolerance
1%
Voltage Rating
4.137V
Width
3.62mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1541-I/TO Datasheet
Download the complete datasheet for Microchip MCP1541-I/TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

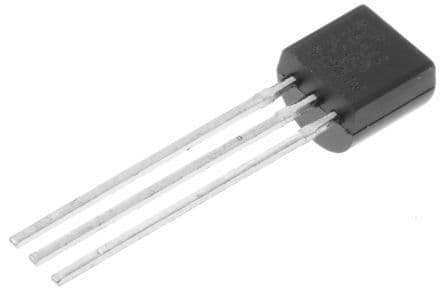

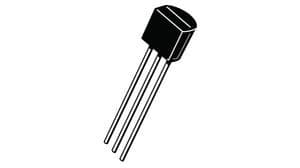

Product Images
