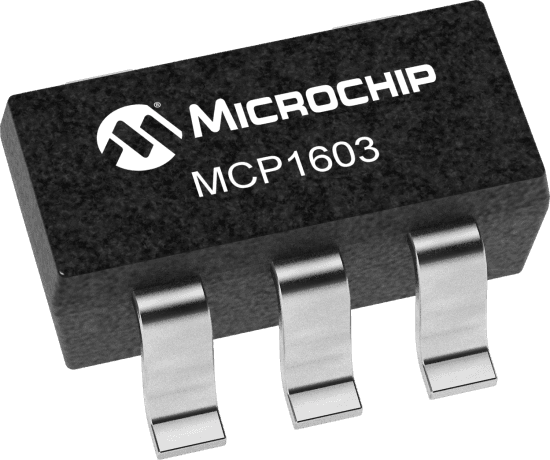

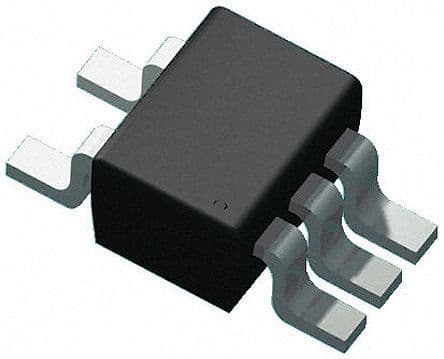

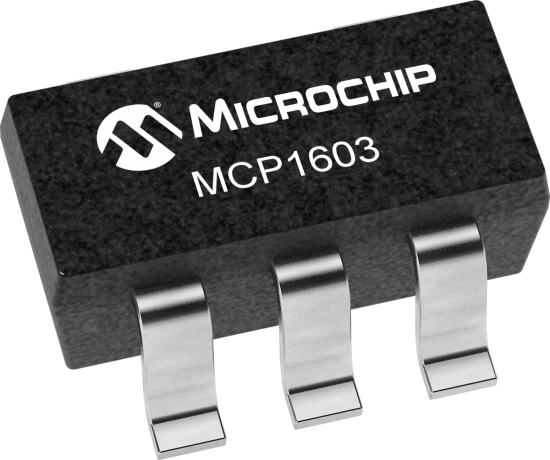

Synchronous step-down DC-DC converter with a 3.3V fixed output voltage and 500mA maximum output current. Operates from a 2.7V to 5.5V input voltage range, achieving up to 90% efficiency. Features a 2.8MHz switching frequency and a compact TSOT surface mount package. Designed for automotive applications with an operating temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP1603T-330I/OS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP1603T-330I/OS technical specifications.
| Package/Case | TSOT |
| Efficiency | 90% |
| Height | 0.039inch |
| Input Bias Current | 100pA |
| Lead Free | Lead Free |
| Length | 0.114inch |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 3.3V |
| Mount | Surface Mount |
| Nominal Output Voltage | 3.3V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5.5V |
| Output Current | 500mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Regulator Type | BUCK |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 2.8MHz |
| Width | 0.063inch |
| RoHS | Compliant |
