Microchip
MCP1631-E/SS
SWITCHING CONTROLLER, 2000 kHz SWITCHING FREQ-MAX, PDSO20, 5.30 MM, LEAD FREE, PLASTIC, SSOP-20
Frequency2MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP1631-E/SS technical specifications.
General
Package/Case
SSOP
Duty Cycle
10%
Fall Time
2.7ns
Height
1.75mm
Lead Free
Lead Free
Length
7.2mm
Max Frequency
2MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Mount
Surface Mount
Number of Outputs
1
Output Current
250mA
Output Voltage
5V
Package Quantity
67
Packaging
Rail/Tube
RoHS Compliant
Yes
Width
5.3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1631-E/SS Datasheet
Download the complete datasheet for Microchip MCP1631-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

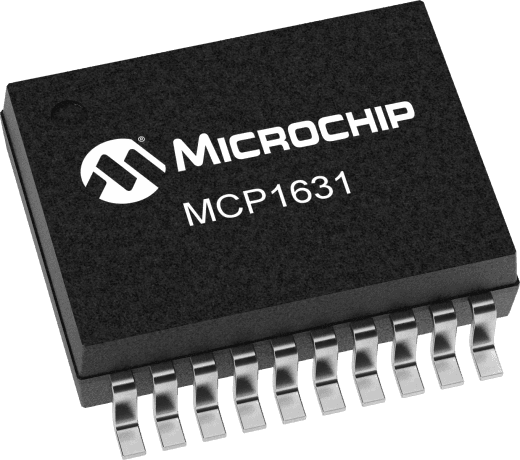

Product Images
