Frequency2MHz
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP1631HV-330E/ST technical specifications.
General
Package/Case
TSSOP
Duty Cycle
10%
Fall Time
2.7ns
Frequency
2MHz
Height
1mm
Length
6.5mm
Max Frequency
2MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
16V
Min Supply Voltage
3.5V
Mount
Surface Mount
Number of Outputs
1
Output Current
250mA
Output Voltage
3.3V
Package Quantity
74
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1631HV-330E/ST Datasheet
Download the complete datasheet for Microchip MCP1631HV-330E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

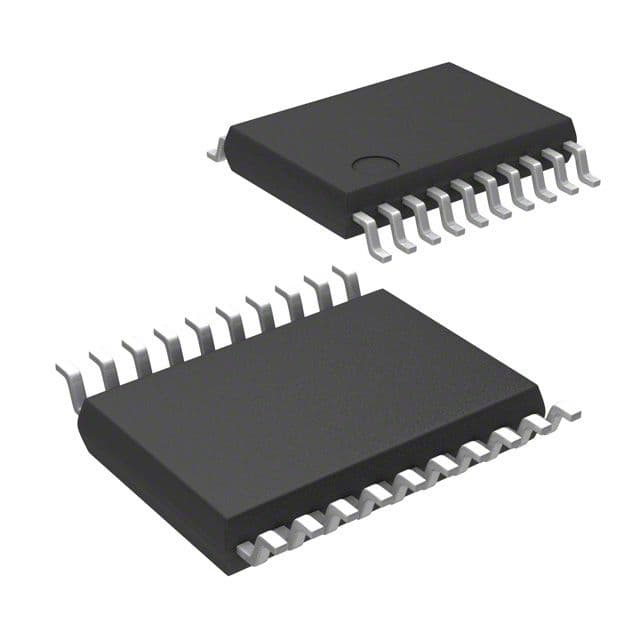

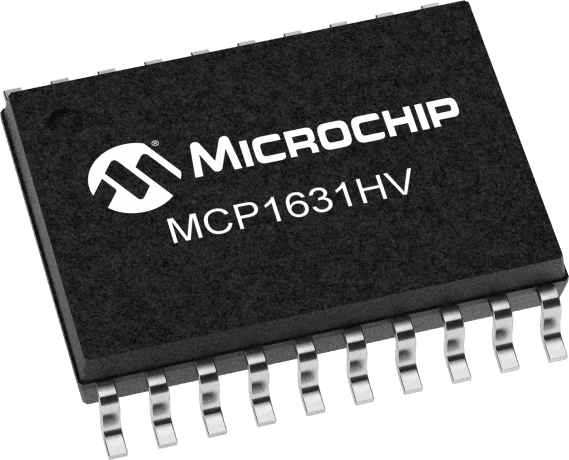

Product Images
