Microchip
MCP1631T-E/SS
SWITCHING CONTROLLER, 2000 kHz SWITCHING FREQ-MAX, PDSO20, 5.30 MM, LEAD FREE, PLASTIC, SSOP-20
Frequency2MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP1631T-E/SS technical specifications.
General
Package/Case
SSOP
Clock Sync
No
Duty Cycle
10%
Fall Time
2.7ns
Max Frequency
2MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Mount
Surface Mount
Number of Output Phases
1
Number of Outputs
1
Output Configuration
Positive
Output Current
250mA
Package Quantity
1600
Packaging
Tape and Reel
RoHS Compliant
Yes
Synchronous Rectifier
No
Topology
SEPIC
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1631T-E/SS Datasheet
Download the complete datasheet for Microchip MCP1631T-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

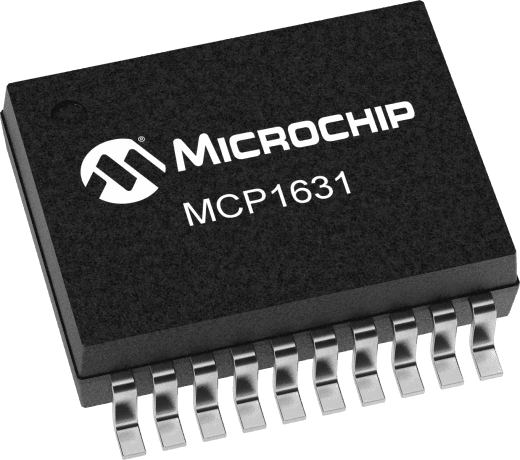

Product Images
