1A switching regulator with a fixed 1.8V output voltage and a maximum switching frequency of 1MHz. This isolated DC/DC controller operates from a 6V to 24V input voltage range, delivering up to 1A output current. Featuring 95% efficiency and a maximum duty cycle of 99%, it is housed in a compact 3mm x 3mm VQFN package with a low 0.95mm height. The device supports a wide operating temperature range of -40°C to 125°C and is RoHS compliant.
PackageVQFN
Quick Jump:
Technical Specifications
Microchip MCP16321T-180E/NG technical specifications.
General
Package/Case
VQFN
Efficiency
95%
Height
0.95mm
Isolation
Isolated
Lead Free
Lead Free
Length
3mm
Max Duty Cycle
99%
Max Input Voltage
24V
Min Input Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
1.8V
Number of Outputs
1
Operating Supply Current
1A
Operating Supply Voltage
24V
Output Current
1A
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
3300
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Switching Frequency-Max
1MHz
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP16321T-180E/NG Datasheet
Download the complete datasheet for Microchip MCP16321T-180E/NG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

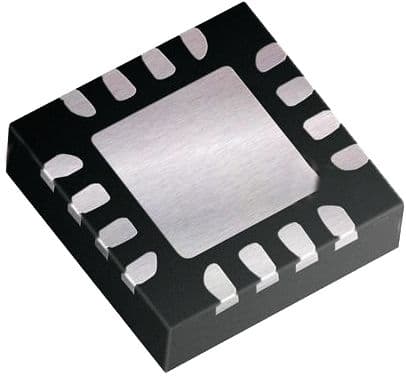

Product Images
