1A switching regulator with a 1100 kHz maximum switching frequency. Features a 5V fixed output voltage and a maximum output current of 1A. Operates from a 6V to 24V input voltage range with up to 95% efficiency. Housed in a 3mm x 3mm VQFN package with a 0.95mm height. Designed for isolated applications and operates across a -40°C to 125°C temperature range.
PackageVQFN
Quick Jump:
Technical Specifications
Microchip MCP16321T-500E/NG technical specifications.
General
Package/Case
VQFN
Efficiency
95%
Height
0.95mm
Isolation
Isolated
Lead Free
Lead Free
Length
3mm
Max Duty Cycle
99%
Max Input Voltage
24V
Min Input Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
5V
Number of Outputs
1
Operating Supply Current
1A
Operating Supply Voltage
24V
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Package Quantity
3300
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP16321T-500E/NG Datasheet
Download the complete datasheet for Microchip MCP16321T-500E/NG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

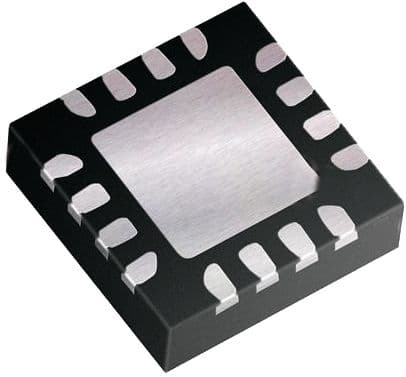

Product Images
