Adjustable 1A DC/DC buck controller IC, featuring a 1MHz switching frequency and up to 95% efficiency. Operates from a 6V to 24V input, delivering an adjustable output voltage from 900mV to 5V with a maximum output current of 1A. Housed in a compact 3mm x 3mm x 0.95mm VQFN package, this isolated, lead-free component supports a maximum duty cycle of 99% and operates across a -40°C to 125°C temperature range.
PackageVQFN
Quick Jump:
Technical Specifications
Microchip MCP16321T-ADJE/NG technical specifications.
General
Package/Case
VQFN
Efficiency
95%
Height
0.95mm
Isolation
Isolated
Lead Free
Lead Free
Length
3mm
Max Duty Cycle
99%
Max Input Voltage
24V
Min Input Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
5V
Min Output Voltage
900mV
Number of Outputs
1
Operating Supply Current
1A
Operating Supply Voltage
24V
Output Current
1A
Output Type
Adjustable
Output Voltage
5V
Package Quantity
3300
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Switching Frequency-Max
1MHz
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP16321T-ADJE/NG Datasheet
Download the complete datasheet for Microchip MCP16321T-ADJE/NG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

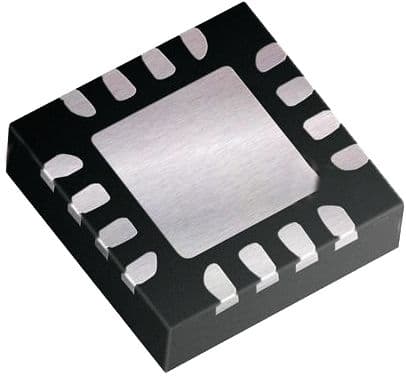

Product Images
