Synchronous DC/DC buck controller IC, fixed 3.3V output, 2A maximum output current. Features up to 95% efficiency, 6V to 24V input voltage range, and 1MHz maximum switching frequency. Encased in a 3mm x 3mm VQFN package with a height of 0.95mm, operating from -40°C to 125°C. This RoHS compliant component offers a 99% maximum duty cycle and is supplied on tape and reel.
PackageVQFN
Quick Jump:
Technical Specifications
Microchip MCP16322T-330E/NG technical specifications.
General
Package/Case
VQFN
Efficiency
95%
Height
0.95mm
Isolation
Isolated
Lead Free
Lead Free
Length
3mm
Max Duty Cycle
99%
Max Input Voltage
24V
Min Input Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Output Voltage
3.3V
Number of Outputs
1
Operating Supply Current
2A
Operating Supply Voltage
24V
Output Current
2A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
3300
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Switching Frequency-Max
1MHz
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP16322T-330E/NG Datasheet
Download the complete datasheet for Microchip MCP16322T-330E/NG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

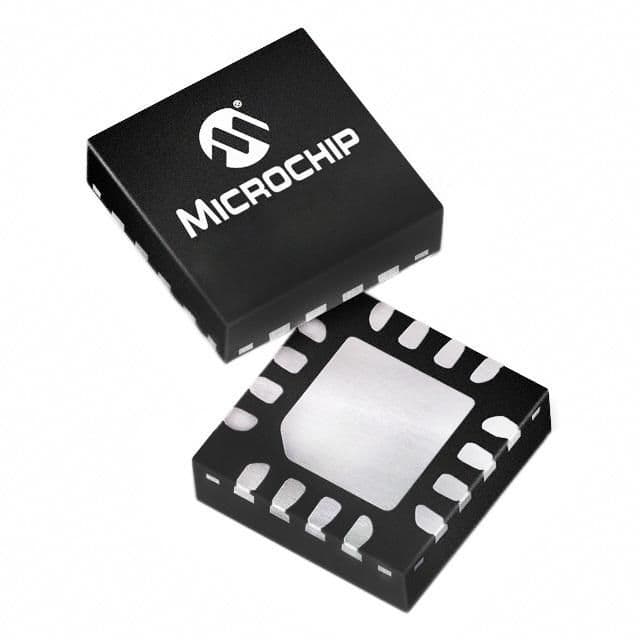

Product Images
