Adjustable DC/DC buck controller IC with a maximum output current of 2A and an efficiency of 95%. Features a wide input voltage range from 6V to 24V, with an adjustable output voltage from 900mV to 5V. Operates at a maximum switching frequency of 1MHz and offers a maximum duty cycle of 99%. Packaged in a 16-pin VQFN with dimensions of 3mm x 3mm x 0.95mm, this RoHS compliant component is suitable for operation between -40°C and 125°C.
PackageVQFN
Current5.2mA
Quick Jump:
Technical Specifications
Microchip MCP16322T-ADJE/NG technical specifications.
General
Package/Case
VQFN
Efficiency
95%
Height
0.95mm
Isolation
Isolated
Lead Free
Lead Free
Length
3mm
Max Duty Cycle
99%
Max Input Voltage
24V
Min Input Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Output Voltage
5V
Min Output Voltage
900mV
Number of Outputs
1
Operating Supply Current
2A
Operating Supply Voltage
24V
Output Current
2A
Output Type
Adjustable
Output Voltage
5V
Package Quantity
3300
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
5.2mA
Switching Frequency-Max
1MHz
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP16322T-ADJE/NG Datasheet
Download the complete datasheet for Microchip MCP16322T-ADJE/NG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

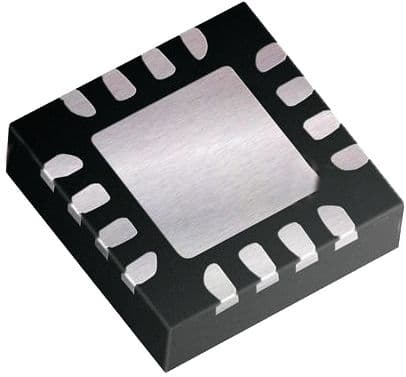

Product Images
