High-efficiency, isolated DC/DC switching regulator with a maximum output current of 3A. Features adjustable output voltage from 900mV to 5V, a maximum switching frequency of 1MHz, and a maximum duty cycle of 99%. Operates from a 6V to 18V input voltage range with a maximum operating temperature of 125°C. Packaged in a 3mm x 3mm VQFN with a height of 0.95mm, this RoHS compliant component offers up to 95% efficiency.
PackageVQFN
Quick Jump:
Technical Specifications
Microchip MCP16323T-ADJE/NG technical specifications.
General
Package/Case
VQFN
Efficiency
95%
Height
0.95mm
Isolation
Isolated
Lead Free
Lead Free
Length
3mm
Max Duty Cycle
99%
Max Input Voltage
18V
Min Input Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
5V
Min Output Voltage
900mV
Number of Outputs
1
Operating Supply Current
3A
Operating Supply Voltage
18V
Output Current
3A
Output Type
Adjustable
Output Voltage
5V
Package Quantity
3300
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Switching Frequency-Max
1MHz
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP16323T-ADJE/NG Datasheet
Download the complete datasheet for Microchip MCP16323T-ADJE/NG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

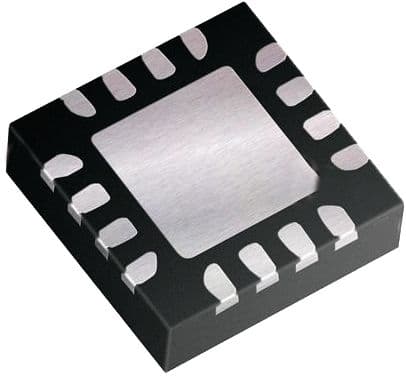

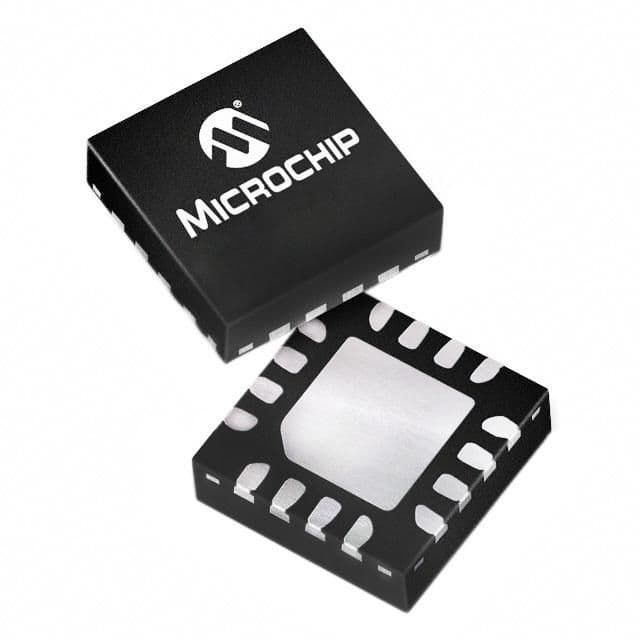

Product Images
