Positive fixed output linear voltage regulator with a 3V nominal output voltage and 2% accuracy. Features a low dropout voltage of 178mV and a maximum output current of 250mA. Operates from a 2.3V to 6V input voltage range with a quiescent current of 4uA. Housed in a 3-pin TO-92 package for through-hole mounting, with a maximum power dissipation of 644mW and an operating temperature range of -40°C to 125°C.
PackageTO-92
MountingThrough Hole
PolarityPositive
Power644mW
Quick Jump:
Technical Specifications
Microchip MCP1700-3002E/TO technical specifications.
General
Accuracy
2%
Package/Case
TO-92
Dropout Voltage
178mV
Height
4.62mm
Input Bias Current
1.6uA
Length
4.71mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Min Output Voltage
3V
Max Power Dissipation
644mW
Mount
Through Hole
Nominal Output Voltage
3V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
250mA
Output Type
Fixed
Output Voltage
3V
Output Voltage Accuracy
2%
Package Quantity
1000
Packaging
Bulk
Polarity
Positive
Power Dissipation
644mW
Power Supply Rejection Ratio (PSRR)
44dB
Quiescent Current
4uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.62mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1700-3002E/TO Datasheet
Download the complete datasheet for Microchip MCP1700-3002E/TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

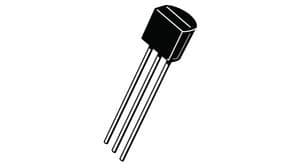

Product Images
