5V fixed positive LDO regulator with 250mA output current and 178mV dropout voltage. Features 2% accuracy, 4µA quiescent current, and a 44dB PSRR. Operates from 2.3V to 6V input voltage, with a maximum power dissipation of 644mW. Packaged in a 3-pin TO-92-3 through-hole mount. Lead-free and RoHS compliant.
PackageTO-92-3
MountingThrough Hole
PolarityPositive
Power644mW
Quick Jump:
Technical Specifications
Microchip MCP1700-5002E/TO technical specifications.
General
Accuracy
2%
Package/Case
TO-92-3
Dropout Voltage
178mV
Height
4.62mm
Input Bias Current
1.6uA
Lead Free
Lead Free
Length
4.71mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Min Output Voltage
5V
Max Power Dissipation
644mW
Mount
Through Hole
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
250mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
1000
Packaging
Bulk
Polarity
Positive
Power Dissipation
644mW
Power Supply Rejection Ratio (PSRR)
44dB
Quiescent Current
4uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.62mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1700-5002E/TO Datasheet
Download the complete datasheet for Microchip MCP1700-5002E/TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

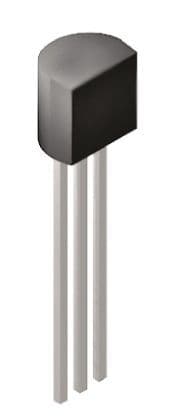

Product Images
