1.2V fixed positive LDO regulator, offering 2% output voltage accuracy and a low 178mV dropout voltage at 200mA. This surface mount component features a 3-pin SOT-23 package, a maximum input voltage of 6V, and operates from -40°C to 125°C. It delivers up to 250mA output current with a quiescent current of 4µA and a PSRR of 44dB.
PackageSOT-23
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1700T-1202E/TT technical specifications.
General
Accuracy
2%
Package/Case
SOT-23
Dropout Voltage
178mV
Height
1.02mm
Input Bias Current
1.6uA
Lead Free
Lead Free
Length
3.05mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Min Output Voltage
1.2V
Max Power Dissipation
369.6mW
Mount
Surface Mount
Nominal Output Voltage
1.2V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
200mA
Output Type
Fixed
Output Voltage
1.2V
Output Voltage Accuracy
2%
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
44dB
Quiescent Current
4uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1700T-1202E/TT Datasheet
Download the complete datasheet for Microchip MCP1700T-1202E/TT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

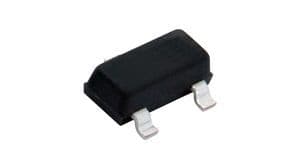

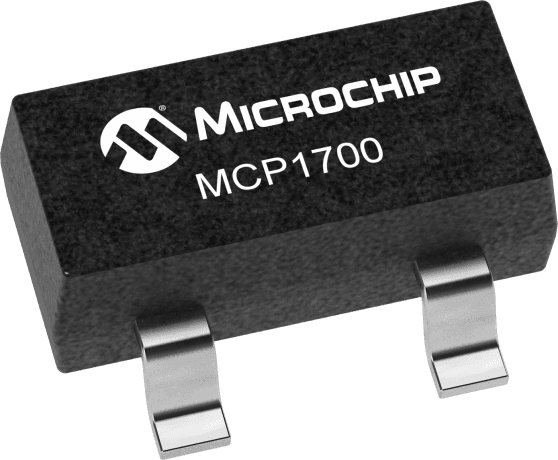

Product Images
