1.8V positive fixed output linear voltage regulator, 200mA maximum output current, 0.35V dropout voltage. Features 3% output voltage accuracy, 4µA quiescent current, and 1.6µA input bias current. Operates from a 2.3V to 6V input voltage range with a maximum power dissipation of 1.635W. Packaged in a 3-pin SOT-89 surface mount case, measuring 4.6mm x 2.29mm x 1.6mm. RoHS compliant and lead-free.
PackageSOT-89-3
Current4uA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1700T-1802E/MB technical specifications.
General
Accuracy
3%
Package/Case
SOT-89-3
Height
1.6mm
Input Bias Current
1.6uA
Lead Free
Lead Free
Length
4.6mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Min Output Voltage
1.8V
Max Power Dissipation
1.635W
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
200mA
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
44dB
Quiescent Current
4uA
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
4uA
Width
2.29mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1700T-1802E/MB Datasheet
Download the complete datasheet for Microchip MCP1700T-1802E/MB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

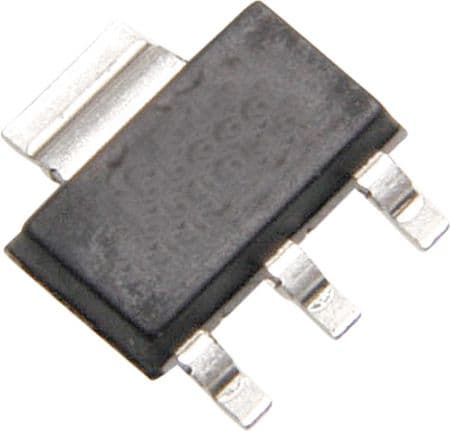

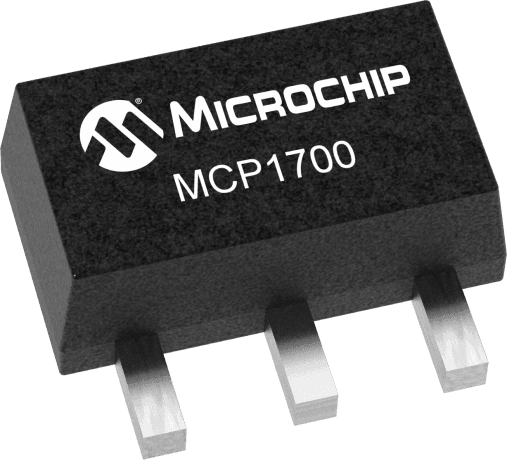

Product Images
