2.5V fixed positive LDO regulator, offering 250mA output current with a low 178mV dropout voltage. Features 2% accuracy, 4µA quiescent current, and a maximum input voltage of 6V. Packaged in a SOT-89-3 surface-mount case, this component operates from -40°C to 125°C. Ideal for power management applications requiring stable voltage regulation.
PackageSOT-89-3
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1700T-2502E/MB technical specifications.
General
Accuracy
2%
Package/Case
SOT-89-3
Dropout Voltage
178mV
Height
1.6mm
Input Bias Current
1.6uA
Lead Free
Lead Free
Length
4.6mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Max Power Dissipation
1.635W
Mount
Surface Mount
Nominal Output Voltage
2.5V
Number of Outputs
1
Number of Regulators
1
Output Current
250mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
4uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
2.29mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1700T-2502E/MB Datasheet
Download the complete datasheet for Microchip MCP1700T-2502E/MB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

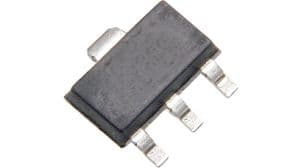

Product Images
