Positive fixed output linear voltage regulator, 3.3V nominal output voltage, with a maximum output current of 250mA. Features a low dropout voltage of 178mV and an accuracy of 2%. Operates with a minimum input voltage of 2.3V and a maximum input voltage of 6V. Packaged in a 3-pin SOT-23 surface mount case, this RoHS compliant component has a maximum operating temperature of 125°C.
PackageSOT-23
Current4uA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1700T-3302E/TT technical specifications.
General
| Accuracy | 2% |
| Package/Case | SOT-23 |
| Dropout Voltage | 178mV |
| Height | 0.95mm |
| Input Bias Current | 1.6uA |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Max Output Voltage | 3.3V |
| Min Output Voltage | 3.3V |
| Max Power Dissipation | 369.6mW |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Nominal Output Voltage | 3.3V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 250mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Dissipation | 369.6mW |
| Quiescent Current | 4uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 4uA |
| Termination | SMD/SMT |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP1700T-3302E/TT Datasheet
Download the complete datasheet for Microchip MCP1700T-3302E/TT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

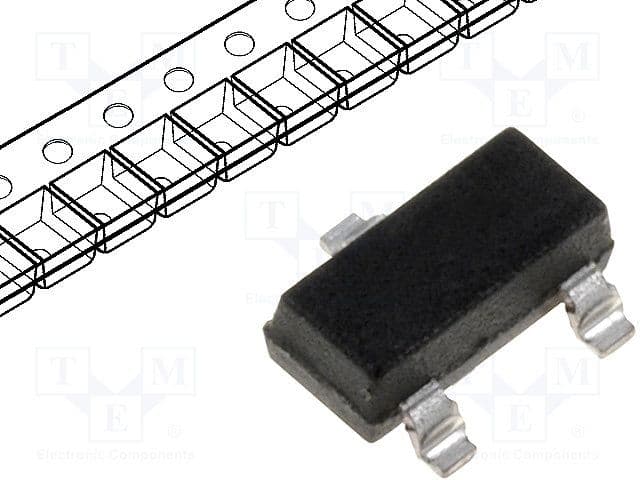

Product Images
