Microchip
MCP1700T-4602E/MB
250mA CMOS LDO, lsupply 1uA and 2% Vout Accuracy, -40C to +125C, 3-SOT-89, T/R
PackageSMD/SMT
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1700T-4602E/MB technical specifications.
General
Accuracy
2%
Package/Case
SMD/SMT
Dropout Voltage
178mV
Max Input Voltage
6.5V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Mount
Surface Mount
Number of Outputs
1
Output Current
250mA
Output Type
Fixed
Output Voltage
4.6V
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
4uA
RoHS Compliant
Yes
Compliance
RoHS
Not Compliant
Datasheet
Microchip MCP1700T-4602E/MB Datasheet
Download the complete datasheet for Microchip MCP1700T-4602E/MB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

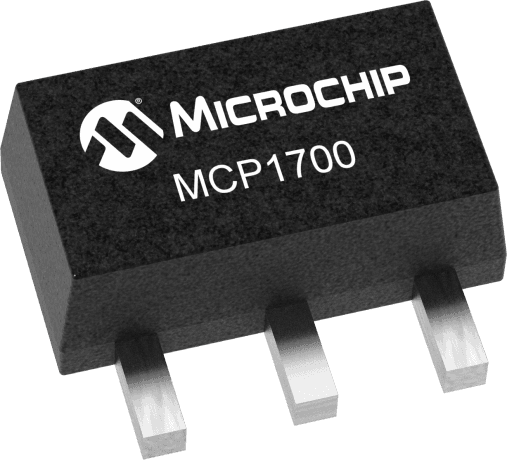

Product Images
