PackageTO-236-3
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1701AT-2502I/CB technical specifications.
General
Accuracy
2%
Package/Case
TO-236-3
Dropout Voltage
400mV
Input Bias Current
2uA
Lead Free
Lead Free
Max Input Voltage
10V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Min Output Voltage
2.5V
Max Power Dissipation
150mW
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
125mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
4.5uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1701AT-2502I/CB Datasheet
Download the complete datasheet for Microchip MCP1701AT-2502I/CB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

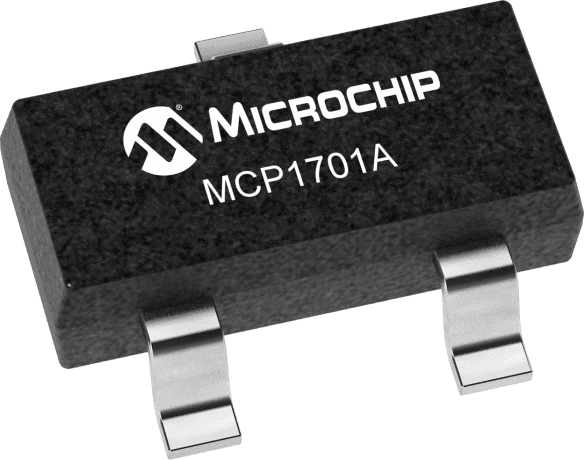

Product Images
