Positive fixed output linear voltage regulator IC with a 2.5V output voltage and 125mA output current. Features a 400mV dropout voltage and 2% accuracy. Operates with a maximum input voltage of 10V and a quiescent current of 4.5uA. Packaged in a SOT-89 surface mount case, this RoHS compliant component offers a wide operating temperature range of -40°C to 85°C.
PackageSOT-89
MountingSurface Mount
PolarityPositive
Power500W
Quick Jump:
Technical Specifications
Microchip MCP1701AT-2502I/MB technical specifications.
General
Accuracy
2%
Package/Case
SOT-89
Dropout Voltage
400mV
Input Bias Current
2uA
Lead Free
Lead Free
Max Input Voltage
10V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Min Output Voltage
2.5V
Max Power Dissipation
500mW
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
125mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
500W
Quiescent Current
4.5uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1701AT-2502I/MB Datasheet
Download the complete datasheet for Microchip MCP1701AT-2502I/MB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

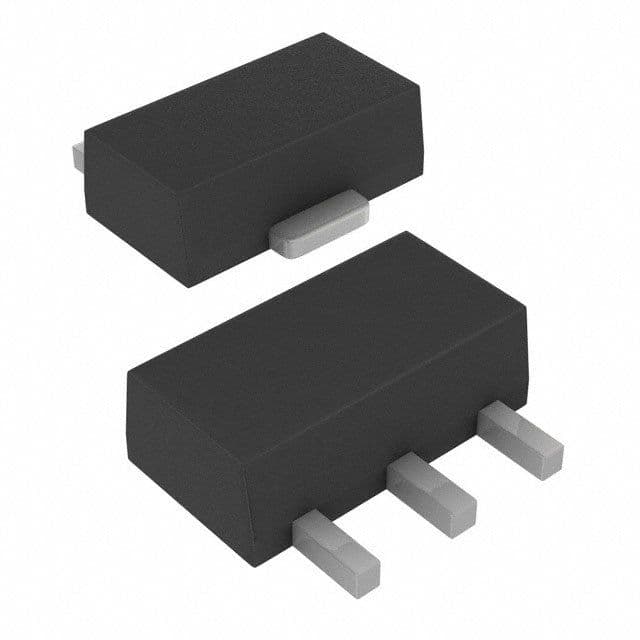

Product Images
