5V fixed positive linear voltage regulator with 250mA output current and 380mV dropout voltage. Features 2% output voltage accuracy, 4.5uA quiescent current, and a maximum input voltage of 10V. Operates from -40°C to 85°C, with a 150mW power dissipation. Packaged in a 3-pin SC-59/SOT-23A surface mount package.
PackageTO-236-3
Current4.5uA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1701AT-5002I/CB technical specifications.
General
Accuracy
2%
Package/Case
TO-236-3
Dropout Voltage
380mV
Height
1.3mm
Input Bias Current
2uA
Lead Free
Lead Free
Length
3.1mm
Max Input Voltage
10V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Min Output Voltage
5V
Max Power Dissipation
150mW
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
250mA
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
2%
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
150mW
Quiescent Current
4.5uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
4.5uA
Width
1.8mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1701AT-5002I/CB Datasheet
Download the complete datasheet for Microchip MCP1701AT-5002I/CB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

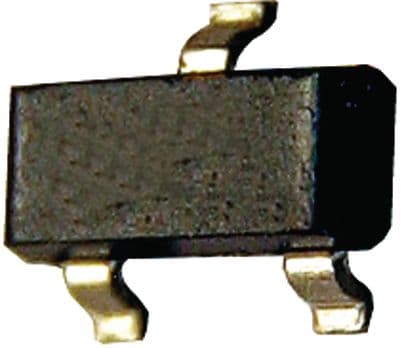

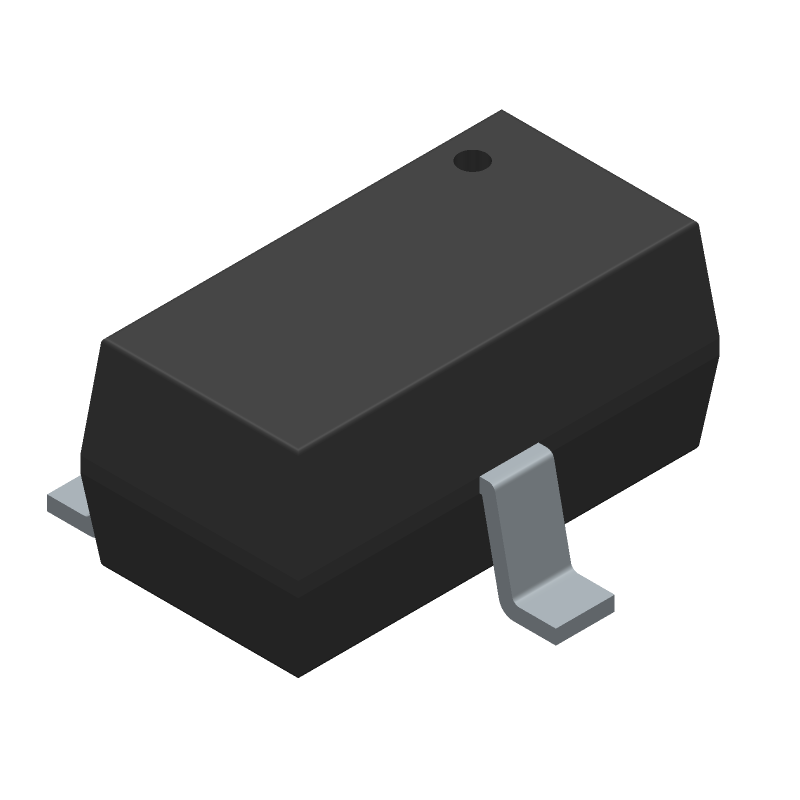

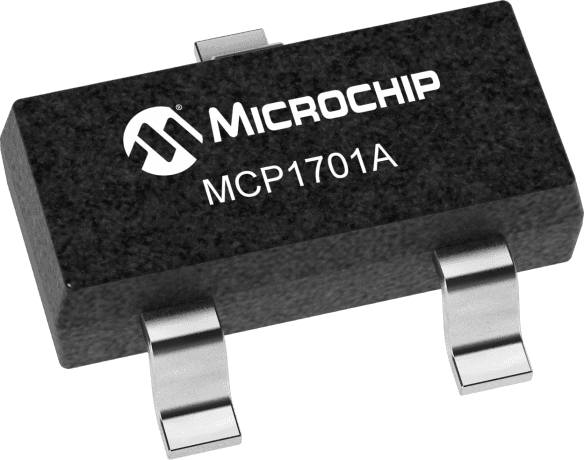

Product Images
