Technical Specifications
Microchip MCP1702-3602E/TO technical specifications.
General
Accuracy
2%
Package/Case
TO-92-3
Dropout Voltage
525mV
Height
0.165inch
Length
5.33mm
Max Input Voltage
13.2V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Mount
Through Hole
Number of Outputs
1
Output Current
250mA
Output Type
Fixed
Output Voltage
3.6V
Packaging
Bulk
Polarity
Positive
Quiescent Current
5uA
Radiation Hardening
No
RoHS Compliant
Yes
Width
0.205inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1702-3602E/TO Datasheet
Download the complete datasheet for Microchip MCP1702-3602E/TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

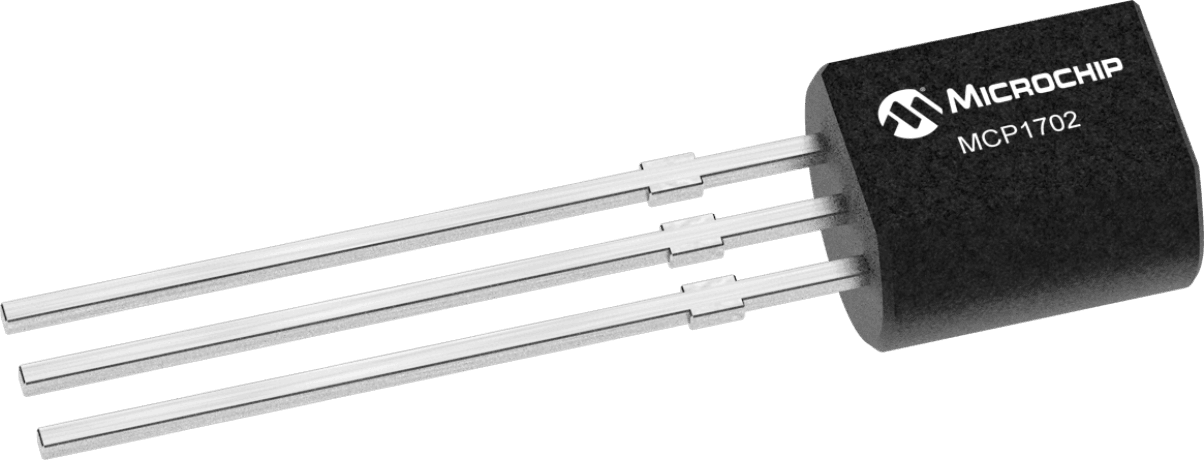

Product Images
