PackageSOT-89-3
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1702T-1202E/MB technical specifications.
General
Accuracy
2%
Package/Case
SOT-89-3
Height
0.063inch
Length
0.181inch
Max Input Voltage
13.2V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Mount
Surface Mount
Number of Outputs
1
Output Current
200mA
Output Type
Fixed
Output Voltage
1.2V
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
44dB
Quiescent Current
5uA
RoHS Compliant
Yes
Width
0.102inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1702T-1202E/MB Datasheet
Download the complete datasheet for Microchip MCP1702T-1202E/MB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

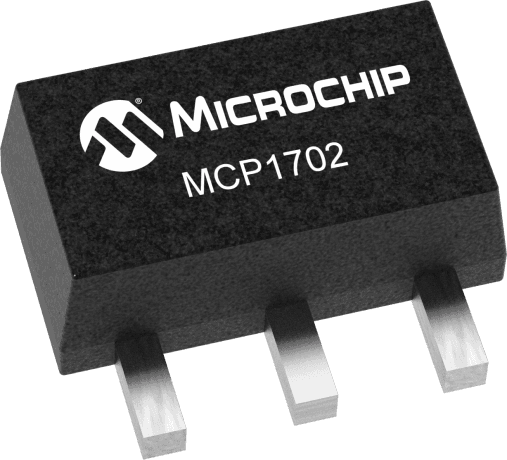

Product Images
