Positive fixed 3V output voltage linear voltage regulator with a maximum output current of 250mA. Features a low dropout voltage of 625mV and high accuracy of 2%. Operates within a wide temperature range of -40°C to 125°C, with a maximum input voltage of 13.2V. Packaged in a SOT-89-3 surface mount case, this RoHS compliant component offers a quiescent current of 5uA and a PSRR of 44dB.
PackageSOT-89-3
Current5uA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1702T-3002E/MB technical specifications.
General
Accuracy
2%
Package/Case
SOT-89-3
Dropout Voltage
625mV
Height
1.6mm
Input Bias Current
2uA
Lead Free
Lead Free
Length
4.6mm
Max Input Voltage
13.2V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Min Output Voltage
3V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
250mA
Output Type
Fixed
Output Voltage
3V
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
44dB
Quiescent Current
5uA
RoHS Compliant
Yes
Supply Current
5uA
Width
2.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1702T-3002E/MB Datasheet
Download the complete datasheet for Microchip MCP1702T-3002E/MB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

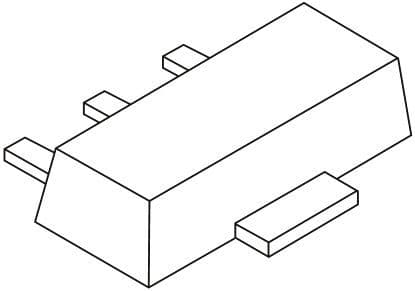

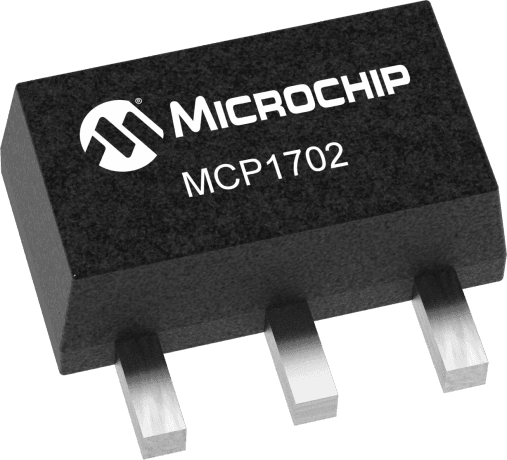

Product Images
