Positive fixed output linear voltage regulator, 5V nominal output voltage with 2% accuracy. Features a maximum output current of 250mA and a low dropout voltage of 330mV. Operates with an input voltage range of 2.7V to 13.2V and a quiescent current of 5uA. Packaged in a 3-pin SOT-23 surface mount case, this RoHS compliant component is supplied on tape and reel.
PackageSOT-23
Current5uA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1702T-5002E/CB technical specifications.
General
Accuracy
2%
Package/Case
SOT-23
Dropout Voltage
330mV
Height
0.051inch
Input Bias Current
2uA
Lead Free
Lead Free
Length
0.122inch
Max Input Voltage
13.2V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Max Output Voltage
5V
Min Output Voltage
5V
Max Supply Voltage
13.2V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
250mA
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
2%
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
253mW
Quiescent Current
5uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
5uA
Termination
SMD/SMT
Width
0.071inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1702T-5002E/CB Datasheet
Download the complete datasheet for Microchip MCP1702T-5002E/CB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

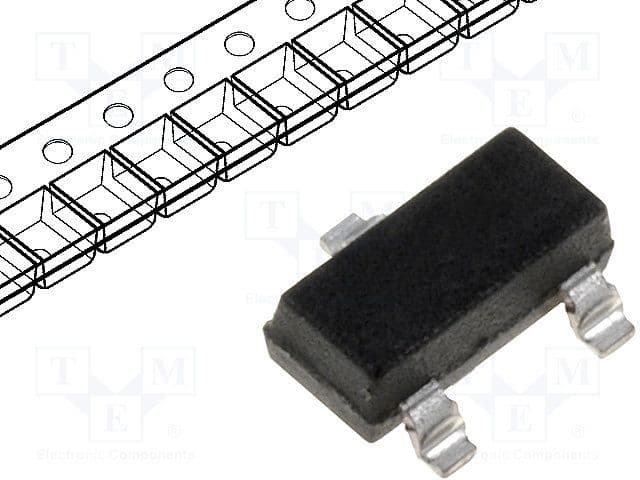

Product Images
