Positive fixed output linear voltage regulator, 3V nominal output voltage with 2% accuracy. Features a maximum output current of 250mA and a low dropout voltage of 625mV. Operates from a minimum input voltage of 2.7V up to a maximum of 16V. This surface mount component is housed in a 3-pin SOT-23A package, offering a quiescent current of 5uA.
PackageTO-236-3
Current5uA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1703T-3002E/CB technical specifications.
General
Accuracy
2%
Package/Case
TO-236-3
Dropout Voltage
625mV
Height
1.3mm
Input Bias Current
2uA
Lead Free
Lead Free
Length
3.1mm
Max Input Voltage
16V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Max Output Voltage
3V
Min Output Voltage
3V
Max Supply Voltage
16V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Output Voltage
3V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
250mA
Output Type
Fixed
Output Voltage
3V
Output Voltage Accuracy
2%
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
253mW
Power Supply Rejection Ratio (PSRR)
44dB
Quiescent Current
5uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
5uA
Termination
SMD/SMT
Width
1.8mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1703T-3002E/CB Datasheet
Download the complete datasheet for Microchip MCP1703T-3002E/CB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

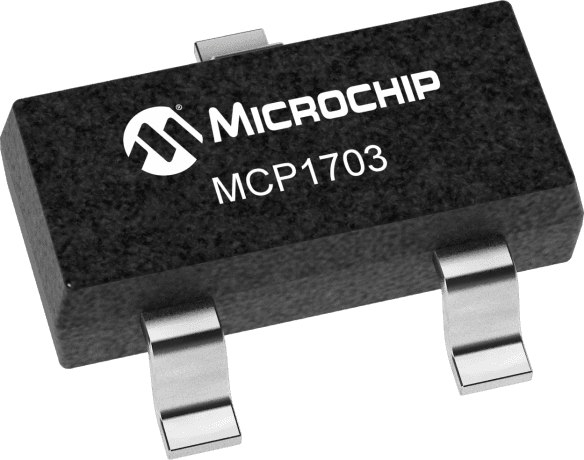

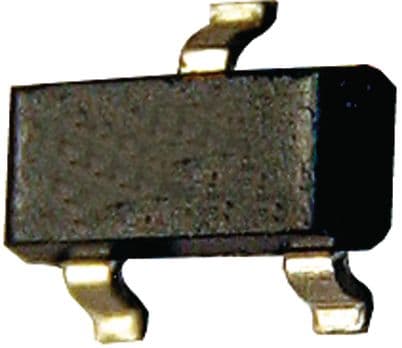

Product Images
