Positive fixed output linear voltage regulator, 3.3V, 250mA output current. Features 2% accuracy, 525mV dropout voltage, and a maximum input voltage of 16V. Operates from 2.7V minimum input voltage with a quiescent current of 5uA. Packaged in a 4-pin SOT-223 surface mount case, supplied on tape and reel. RoHS compliant and lead-free.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1703T-3302E/DB technical specifications.
General
Accuracy
2%
Package/Case
SOT-223
Dropout Voltage
525mV
Height
1.7mm
Input Bias Current
2uA
Lead Free
Lead Free
Length
6.7mm
Max Input Voltage
16V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Min Output Voltage
3.3V
Mount
Surface Mount
Number of Channels
1
Number of Outputs
1
Output Current
250mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
4000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
5uA
Radiation Hardening
No
RoHS Compliant
Yes
Width
3.7mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1703T-3302E/DB Datasheet
Download the complete datasheet for Microchip MCP1703T-3302E/DB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

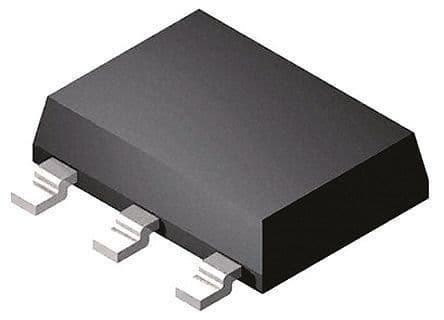

Product Images
