3.3V fixed positive LDO regulator with 500mA output current and 210mV dropout voltage. Features 2% output voltage accuracy, 60dB PSRR, and a maximum input voltage of 6V. Operates from -40°C to 125°C in a lead-free SOIC-8 surface mount package.
PackageSOIC
Current120uA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1725-3302E/SN technical specifications.
General
Accuracy
2%
Package/Case
SOIC
Dropout Voltage
210mV
Height
1.25mm
Input Bias Current
120uA
Lead Free
Lead Free
Length
4.9mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Min Output Voltage
3.3V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
2%
Package Quantity
100
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
120uA
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1725-3302E/SN Datasheet
Download the complete datasheet for Microchip MCP1725-3302E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

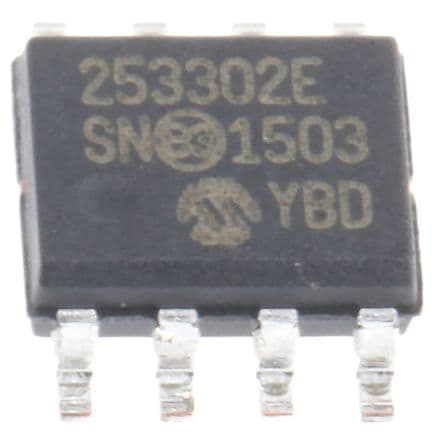

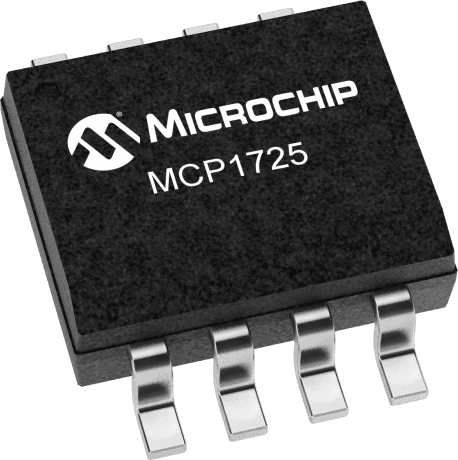

Product Images
