1.8V fixed output linear voltage regulator, delivering up to 1.5A with 2% accuracy. Features a low dropout voltage of 330mV and a maximum input voltage of 6V. This surface mountable SOIC package component operates across a wide temperature range of -40°C to 125°C. Boasts a 60dB PSRR and is RoHS compliant.
PackageSOIC
MountingSurface Mount
PolarityPositive
Power433mW
Quick Jump:
Technical Specifications
Microchip MCP1727-1802E/SN technical specifications.
General
Accuracy
2%
Package/Case
SOIC
Dropout Voltage
330mV
Height
1.25mm
Input Bias Current
120uA
Lead Free
Lead Free
Length
4.9mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
1.8V
Max Supply Voltage
6V
Min Supply Voltage
2.3V
Mount
Surface Mount
Nominal Output Voltage
1.8V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1.5A
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
100
Packaging
Rail/Tube
Polarity
Positive
Power Dissipation
433mW
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1727-1802E/SN Datasheet
Download the complete datasheet for Microchip MCP1727-1802E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

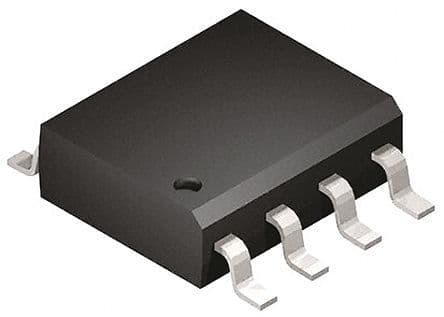

Product Images
