3.3V fixed positive LDO regulator with 150mA output current and 300mV dropout voltage. Features 2% output voltage accuracy, 90µA quiescent current, and a maximum input voltage of 16V. Operates from -40°C to 125°C and is housed in a 3-pin SOT-23 surface-mount package. RoHS compliant and lead-free.
PackageSOT-23
Current56uA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1754ST-3302E/CB technical specifications.
General
Accuracy
2%
Package/Case
SOT-23
Dropout Voltage
300mV
Height
1.3mm
Lead Free
Lead Free
Length
3.1mm
Max Input Voltage
16V
Min Input Voltage
3.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Min Output Voltage
3.3V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Output Current
150mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
2%
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
90uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MCP1754
Supply Current
56uA
Width
1.8mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1754ST-3302E/CB Datasheet
Download the complete datasheet for Microchip MCP1754ST-3302E/CB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

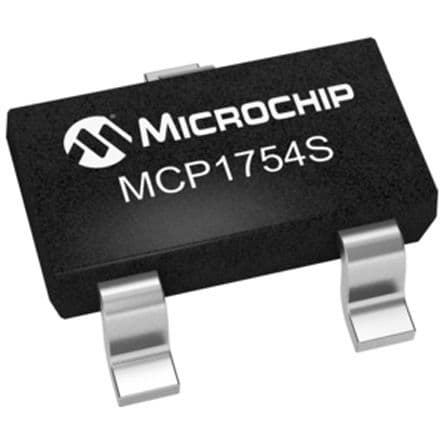

Product Images
