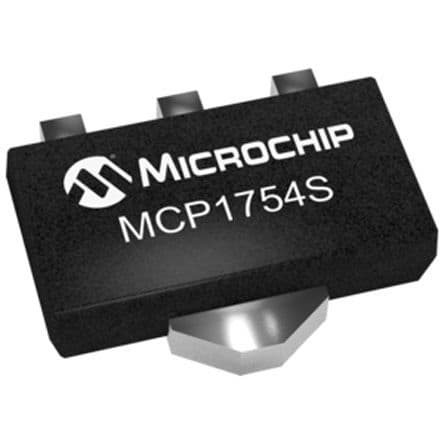

Positive fixed 3.3V output voltage linear voltage regulator with 150mA maximum output current. Features a 300mV dropout voltage at 150mA and 2% output voltage accuracy. Operates from a 3.6V to 16V input voltage range with a low quiescent current of 90µA. Housed in a 3-pin SOT-89 package, this RoHS compliant component offers a wide operating temperature range of -40°C to 125°C.
PackageSOT-89
Current56uA
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1754ST-3302E/MB technical specifications.
General
Accuracy
2%
Package/Case
SOT-89
Dropout Voltage
300mV
Height
1.6mm
Lead Free
Lead Free
Length
4.6mm
Max Input Voltage
16V
Min Input Voltage
3.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Min Output Voltage
3.3V
Nominal Output Voltage
3.3V
Number of Outputs
1
Output Current
150mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
2%
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
90uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MCP1754
Supply Current
56uA
Width
4.25mm
Compliance
RoHS
Compliant
