3V fixed positive LDO regulator with 500mA output current and 210mV dropout voltage. Features 0.5% output voltage accuracy, 6V maximum input voltage, and a wide operating temperature range of -40°C to 125°C. This surface mount component is housed in a SOT-223 package, offering a compact 1.6mm height, 6.5mm length, and 3.5mm width. RoHS compliant and lead-free.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1825S-3002E/DB technical specifications.
General
Accuracy
0.5%
Package/Case
SOT-223
Dropout Voltage
210mV
Height
1.6mm
Input Bias Current
120uA
Lead Free
Lead Free
Length
6.5mm
Max Input Voltage
6V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Min Output Voltage
3V
Mount
Surface Mount
Nominal Output Voltage
3V
Number of Channels
1
Number of Outputs
1
Output Current
500mA
Output Type
Fixed
Output Voltage
3V
Output Voltage Accuracy
0.5%
Package Quantity
78
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1825S-3002E/DB Datasheet
Download the complete datasheet for Microchip MCP1825S-3002E/DB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

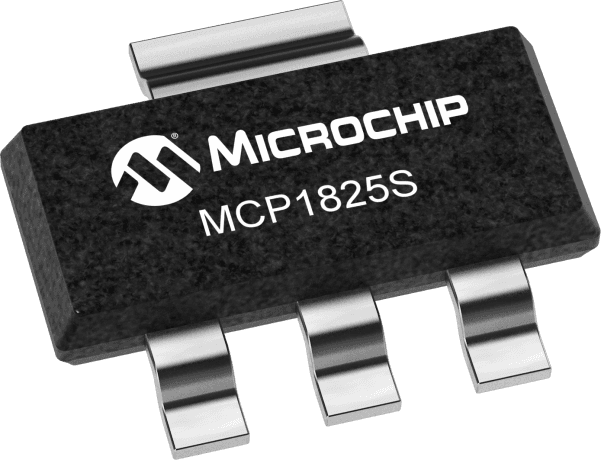

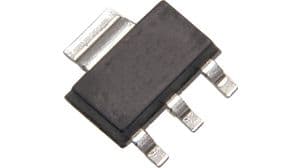

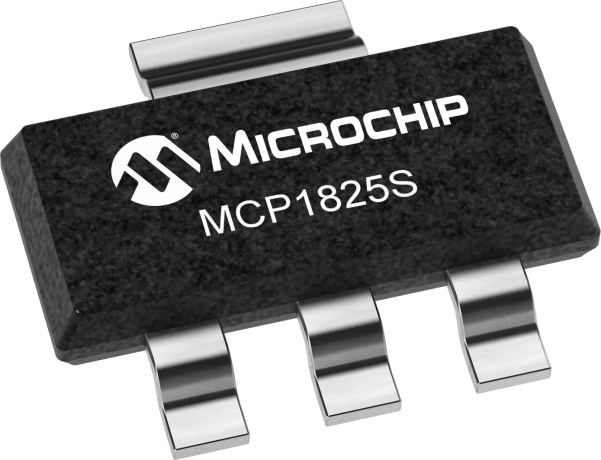

Product Images
