3.3V fixed positive LDO regulator with 0.5% output voltage accuracy. Features a 210mV dropout voltage at 500mA output current. Operates from a 2.1V to 6V input voltage range with a maximum output current of 500mA. Housed in a TO-220 package for through-hole mounting. Offers a wide operating temperature range of -40°C to 125°C.
PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1825S-3302E/AB technical specifications.
General
Accuracy
0.5%
Package/Case
TO-220
Dropout Voltage
210mV
Height
9.02mm
Input Bias Current
120uA
Lead Free
Lead Free
Length
10.67mm
Max Input Voltage
6V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Mount
Through Hole
Nominal Output Voltage
3.3V
Number of Outputs
1
Output Current
500mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
0.5%
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
4.83mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1825S-3302E/AB Datasheet
Download the complete datasheet for Microchip MCP1825S-3302E/AB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

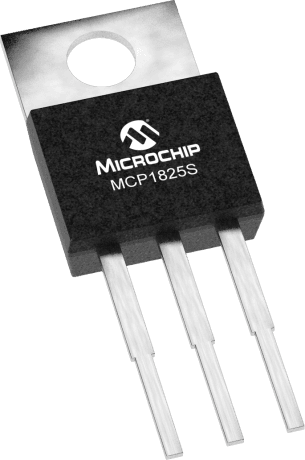

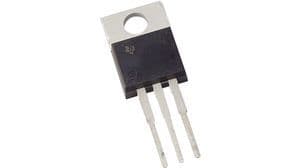

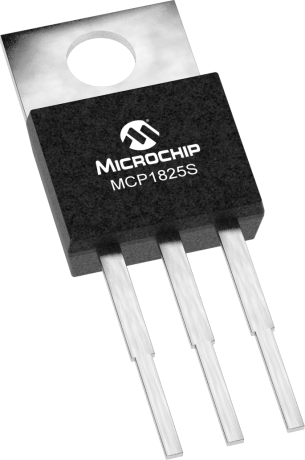

Product Images
