Positive fixed linear voltage regulator with 3.3V output voltage and 0.5% accuracy. Features a low dropout voltage of 210mV and a maximum output current of 500mA. Operates with an input voltage range from 2.1V to 6V. Packaged in a SOT-223 surface-mount case, this component is RoHS compliant and suitable for operation between -40°C and 125°C.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1825T-3302E/DC technical specifications.
General
Accuracy
0.5%
Package/Case
SOT-223
Dropout Voltage
210mV
Height
1.6mm
Input Bias Current
120uA
Lead Free
Lead Free
Length
6.5mm
Max Input Voltage
6V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Output Current
500mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
0.5%
Package Quantity
4000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1825T-3302E/DC Datasheet
Download the complete datasheet for Microchip MCP1825T-3302E/DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

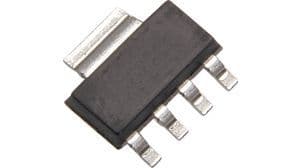

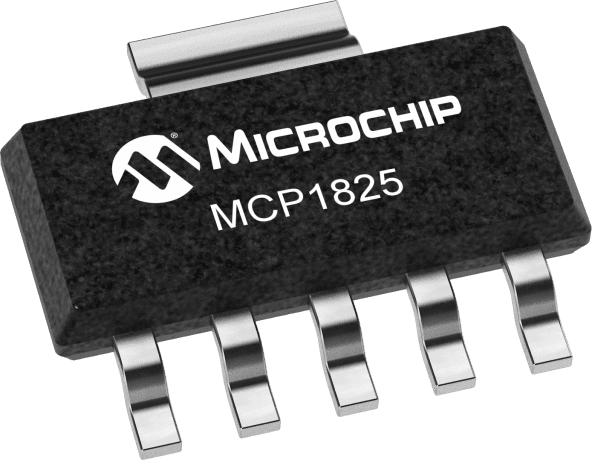

Product Images
