PackageTO-220-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications

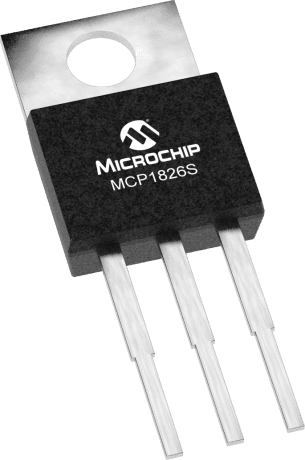

Microchip MCP1826S-0802E/AB technical specifications.
General
Accuracy
2%
Package/Case
TO-220-3
Input Bias Current
120uA
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Min Output Voltage
800mV
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
800mV
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
220uA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1826S-0802E/AB Datasheet
Download the complete datasheet for Microchip MCP1826S-0802E/AB to view detailed technical specifications.
